HD 1000 Truck Mounted Pile Driver | Palfinger UK

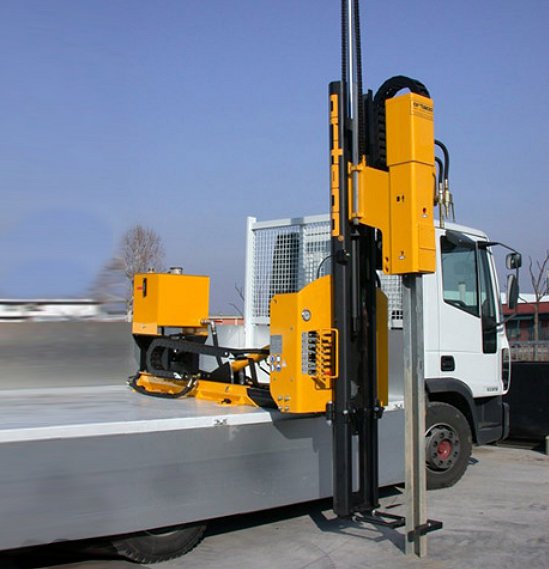

HD 1000 Truck Mounted Pile Driver

Built for heavy-duty pile-driving, this truck mounted HD 1000 is stronger and heavier than our SMART models, allowing you to work for longer. Delivering 680 blows per minute with a 1,060 Joule hammer, the HD 1000 is highly manoeuvrable.

Technical Data

Hammer rating	1060 J
Blows per minute	570/1180
Oil flow	PTO 95-98 lt
Maximum pressure	18MPa
Maximum diameter of post	Std. 200mm
Maximum height of post	Std. 2800mm, Opt. 4500mm
Engine
Hammer Noise level	112 dbA
Oil tank capacity	Suggested 145 lt
Electric starter	-
Diesel tank capacity	-
Total weight	1525kg
Inclination kit	yes
Extractor connection	yes
Auxiliary plant for accessories	yes

HD 1000 Truck Mounted Pile Driver
