Smart 800 Truck Mounted Pile Driver | Palfinger UK

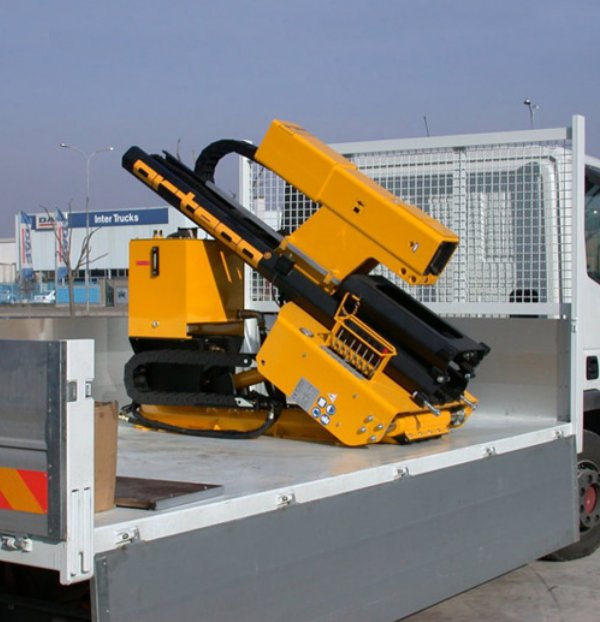

Smart 800 Truck Mounted Pile Driver

A highly-efficient, lightweight truck mounted pile-driver delivering up to 680 blows per minute using innovative design to efficiently cut costs and vibrations, minimising noise and exhaust emissions. The SMART 800 combines safety with economy and functionality.

Technical Data

Hammer rating	830 J
Blows per minute	620/1500
Oil flow	PTO 75-78 lt
Maximum pressure	15MPa
Maximum diameter of post	Std. 180mm, Opt. 200mm
Maximum height of post	Std. 2800mm, Opt. 3500mm
Engine
Hammer Noise level	112 dbA
Oil tank capacity	Suggested 120 lt
Electric starter	/
Diesel tank capacity	/
Total weight	1275kg
Inclination kit	yes
Extractor connection	yes
Auxiliary plant for accessories	yes

Smart 800 Truck Mounted Pile Driver
