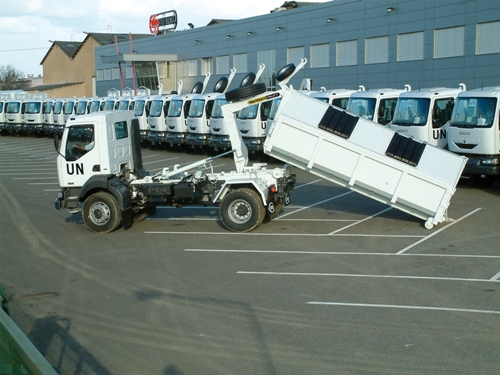

Telescopic T15

TRUCKS UP TO 19T GVW

FEATURES

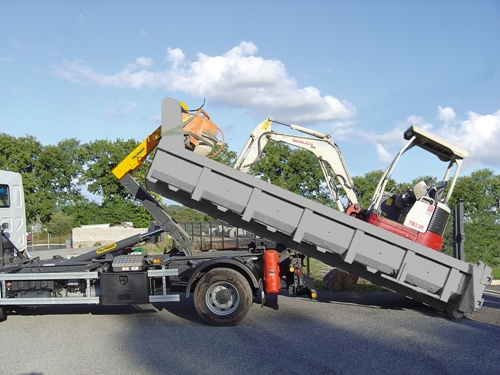

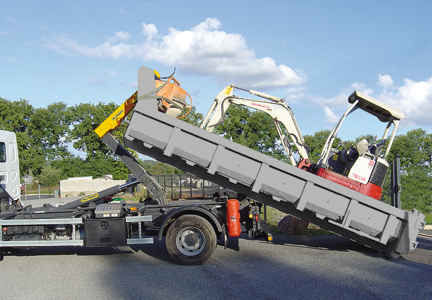

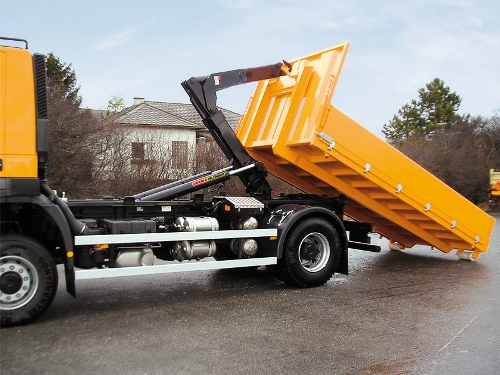

The Telescopic T15 allows the use of containers in different lengths. It also provides the opportunity to load a draw-bar trailer. The Telescopic hook loaders are twin-cylinder units offering increased tipping capacity. Constructed with the Palfinger design and build quality you can rely on.

All models come with full 3 year Warranty.

BENEFITS

Multi-application hook loader
Low transport height

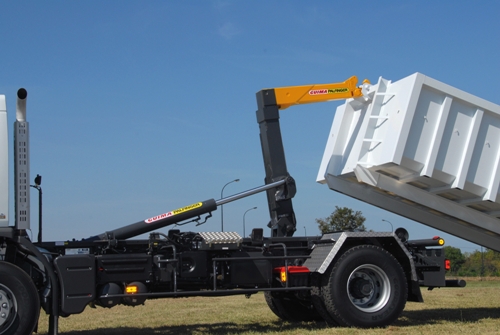

Increased tipping force due to twin cylinders
Less wear on the bearing due to less horizontal forces
Soft landing – reducing shock to both truck and bin
Comfortable and ergonomic
Maintenance free bushes

Technical Data
POP & SAM

Unit length (mm)	Container max. length (mm)	Container min. length (mm)	Transport height (mm)	Weight (kg)	Tipping angle (°)
4750	5485	4270	300	1650	50
5500	6100	4877	300	1700	47

POP - PALFINGER ORIGIN PROTECTION

Before installation the main components are sand-blasted, degreased, primer painted and final coated (in line with a customer's specification). All other parts are zinc nickel anti-corrosion treated. ISO 12944 standard specifications are met. Specifically concerning surface protection, notably classification 3 urban and industrial atmosphere – moderate levels of sulphur dioxide – production plants with high humidity.

BENEFITS OF POP

- Ensures our customers' products receive the highest finish
- Fully treated and coated equipment
- Durability results in increased product life-span
- Thus increasing the residual value.

POP is a guarantee of an in-house surface protection process, designed to deliver long lasting equipment.

SAM - SECURED ADVANCED MOUNTING

We offer corrosion protected and fully boltable mounting plates and accessories.

SAM (Secured Advanced Mounting) ensures compliance with the mounting instructions of PALFINGER and the installation guidelines of truck producers. Due to its bolted technology and the full corrosion protection SAM guarantees high quality and longevity of equipment.

Easier lifetime maintenance. This type of mounting ensures assembling standardization.

INCREASED LIFETIME - PAINTING

Equipment can be ordered with a chassis-matched colour for the final coat. The components are painted before installation and all non painted parts (pins, pin stops, fittings, springs) are corrosion protected.

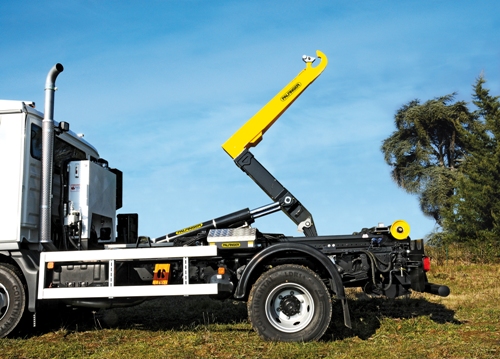

Subframe, tipping frame and hinge are chassis colour-matched. All cylinders are painted in Black RAL 9011, arm + horizontal part and rear pulleys in Yellow RAL 1003. The yellow high-impact colour offers increased visibility to moving parts for enhanced safety. Under-run protection is treated in KTL Black RAL 9011.

Telescopic T15
